Identify a thread

Not sure what thread you have?

Three measurements are usually enough. Use calipers or a ruler, and a thread gauge if you have one.

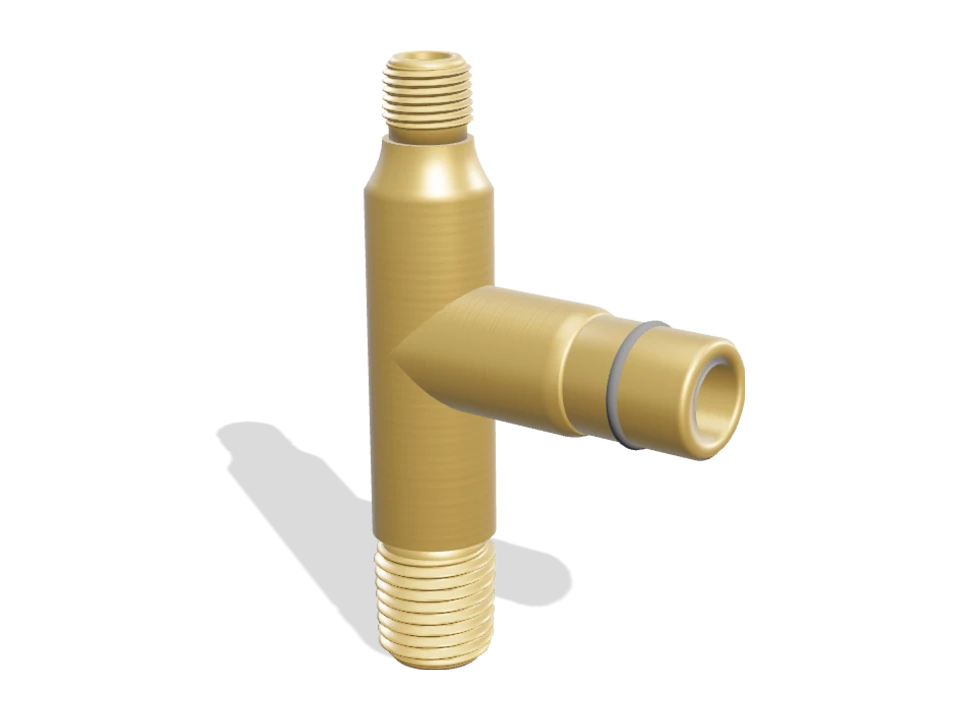

Rendering of a brass tee with male pipe threads and an O-ring injector branch
  1. 1
    Diameter

    Measure across the outside of a male thread, or the inside of a female port. Measure the peaks, not the valleys.

  2. 2
    Pitch

    Count thread peaks over one inch, or measure the distance between peaks in millimeters for metric.

  3. 3
    Taper

    If it narrows toward the end it is NPT or BSPT. Straight threads seal with an O-ring, washer or flare.

Thread data

Sizes, dimensions and pressure ratings for every standard we machine. Pressure values are nominal working ratings for steel at room temperature.
